8 Ports Dual Power Supply Gigabit FTTH OLT For Fttx Solutions

  • 1
  • 2
  • 3

Brand Name : Hioso

Model Number : HA7308C

Certification : CE, RoHS, CCC

Place of Origin : China, Guang dong

MOQ : 1

Price : Negotiable

Payment Terms : T/T, Western Union

Supply Ability : 2000pcs/month

Delivery Time : 3-10 working days

Packaging Details : 54X32X18 cm

Keywords : FTTH OLT 8 PON EPON OLT

Contact Now

Ftth 8 Ports Epon Olt 1u Rack Dual Power Supply Gigabit Olt For Fttx Solutions

Overview

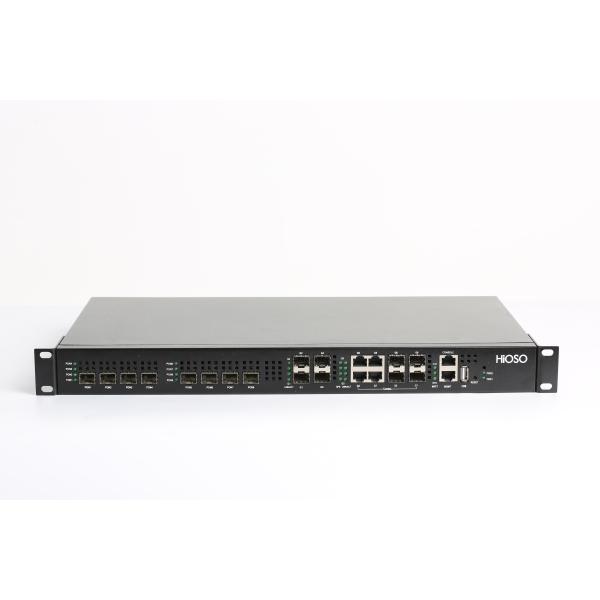

HA7308C is a U rack type 8 SFP PON ports OLT.HA7308C works with HA7200 series ONU and ODN, to establish a passive optic network.

Feature

  • Distance can reach 20km under 1:32 split ratio
  • Each PON port can support 1.64 split ratio, total 512 ONUs access

Technical Specification

Parameter Specification
Operating wavelength 1310(RX) /1490(TX)
Optical power +2.5 ~ +7dBm
Receiving sensitivity -27dBm
Max distance 20km
Max splitter ratio 1:64
Capacity 8 SFP PON, each PON supports max 64pcs ONU, total 512pcs ONU
MAC 16k
Uplink port 4 SFP ports + 4 Combo(SFP/TP) ports
PON port 8 SFP 1000M fiber ports
Control port

1 10/100/1000M RJ45 port

1 Console(RJ45), to debug the device

1 USB port
MTBF 100,000 hours
EPON traits Support AES-128 encryption to each Logical Link Identifier
Support powerful OAM function, implement telnet management, maintenance and upgrade
Support auto discovery and auto register of ONU (real-time operation)
Network management Support GUI management based on SNMP
Support WEB management and Telnet GUI management based on CLI

Working Environment

Parameter Specification
Power Dual AC100~240V 50/60HZ
Power Consumption 35W
Operating temperature -10—55 C
Storage temperature -40—70 C
Humidity 5%--90% non-condensing
Dimension 440mm(length) * 260mm(width) * 44mm(height)
